Double your garage parking capacity with smart hydraulic lifting technology — 2.7 to 3.5-ton rated capacity for all SUVs & Sedans, engineered with multi-tier independent mechanical safety locks.
URBAN PARKING SQUEEZE
Rapid urbanization and skyrocketing urban land values strictly constrain garage footprints in modern villas and townhouses. Adding a second vehicle quickly creates daily logistical headaches:
HASY Home Car Lifts solve this permanently: Utilizing vertical overhead space to stack vehicles safely or concealing them flush below ground level without claiming an extra square foot of floor space.
ENGINEERED CONFIGURATIONS
Select the optimal design based on ceiling height and architectural landscape preferences:
Elevates the first vehicle overhead via dual robust steel columns, freeing up the entire ground floor space below for your second car. Zero pit excavation needed.

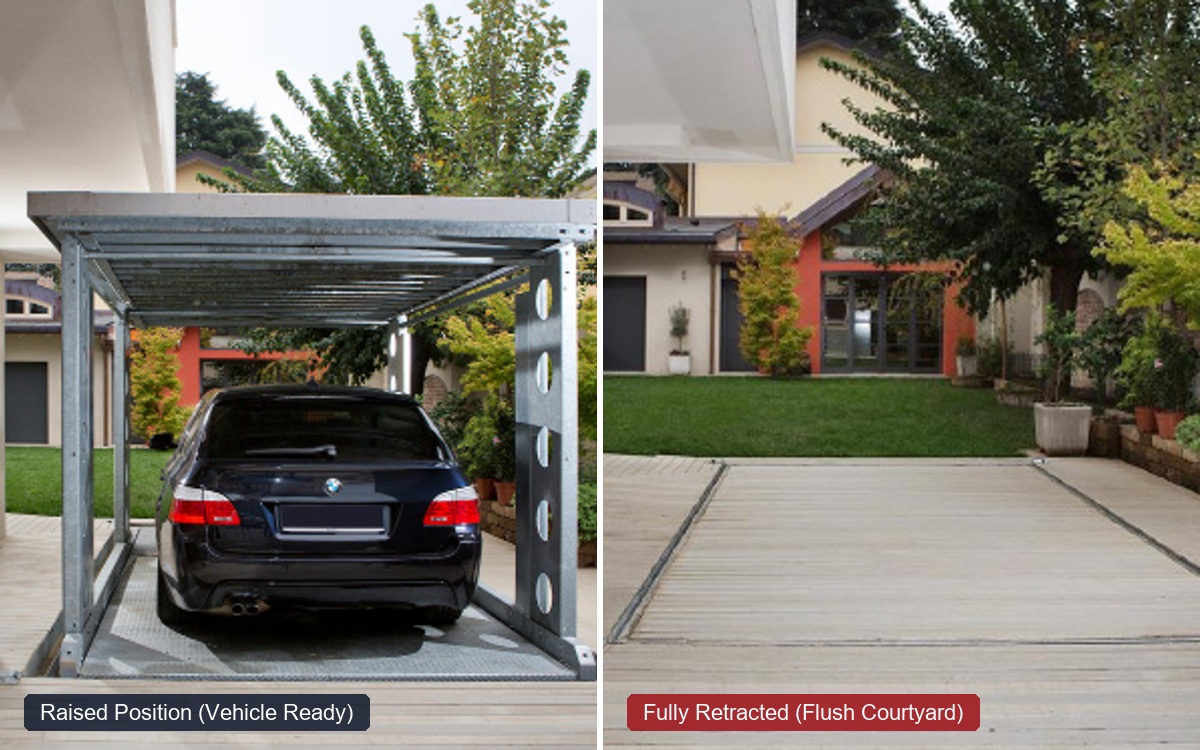

Lowers one car safely into an underground pit. The flush top platform tiles seamlessly with your courtyard stone or parks a second vehicle. 100% independent vehicle retrieval.
HEAVY MECHANICAL SAFETY
Engineered to ensure your valuable vehicles and family remain absolutely safe under all operating conditions:
Heavy-duty hardened steel safety dogs mechanically latch at multiple column heights. When parked, the car’s weight rests on steel, relieving hydraulic pressure.
Integrated directly into cylinder ports. In the event of a sudden hydraulic hose rupture, the valve locks instantaneously, preventing free-fall.
Infrared photo-eye beams monitor the entire clearance zone beneath the lift. The lift immediately inhibits descent if an obstacle or vehicle is detected.
In the event of a power outage, a manual needle valve allows controlled, gentle gravity descent to safely drive the vehicle out.
ENGINEERING SPECIFICATIONS
Standard engineering parameters for HASY Industries Home Car Lift configurations:
| Technical Specification | 2-Post Stacker Car Lift | Subterranean Pit Car Lift |
|---|---|---|
| Rated Lifting Capacity | 2,700 kg – 3,200 kg | 3,000 kg – 3,500 kg |
| Lifting Travel Height | 1,850 mm – 2,100 mm (adjustable) | 2,000 mm – 2,200 mm |
| Required Ceiling Height | > 3,600 mm (for Sedan + SUV combo) | Unconstrained (in-ground installation) |
| Pit Excavation Demands | Zero Excavation (fastens to existing concrete floor) | Requires 1.9m – 2.2m pit foundation |
| Retrieval Independence | Dependent (lower car moved first) | 100% Independent (access any car freely) |
| Drive Mechanism | Hydraulic Cylinder + Dual Equalizing Cables | Direct Synchronized Multi-Stage Hydraulics |
| Power Supply | 1-Phase 220V or 3-Phase 380V (2.2 kW pump) | 3-Phase 380V (3.7 kW – 5.5 kW pump) |
TURNKEY PROCESS
Direct factory fabrication and commissioning backed by 13 years of engineering rigor:
Precise measurement of bay length, width, ceiling clearances, and concrete foundation load rating.
Vehicle kinematic modeling based on your exact car dimensions, column placements, and turning radii.
Heavy steel fabrication, outdoor-rated powder coating, hydraulic cylinder assembly, and electrical wiring.
On-site installation in 1-2 days, 120% overload testing, safety certification, and user training.
DESIGN & CONSTRUCTION PARTNERSHIPS
HASY Industries provides complete pit structural drawings, column load reactions, and 3D CAD models directly compatible with residential architectural BIM workflows:
Comprehensive 2D/3D CAD library access, aesthetic lift concealment consulting, and ceiling clearance optimization.
Detailed pit construction drawings, drainage sump specifications, and pre-wiring electrical conduits prior to pour.
Competitive trade discounts, joint client consultation support, 5-year structural warranty, and lifetime maintenance care.
To stack two vehicles vertically, minimum clear ceiling height should be 3.6m to 3.8m (for two Sedans or a Sedan + compact SUV combo), or 3.9m to 4.2m (for two full-size SUVs). If your garage ceiling is lower than 3.2m, a subterranean pit car lift is the ideal solution.
Never. Every HASY cylinder features integrated parachute flow-limiting valves that instantly seal if fluid pressure drops suddenly. Furthermore, hardened steel mechanical safety latches automatically lock the carriage at fixed intervals, carrying the car’s weight mechanically rather than relying on hydraulic pressure.
Yes. Our 2-post stacker lifts utilize a 2.2kW power unit with an optional configuration engineered for standard single-phase 220V household electricity. For subterranean pit lifts with larger hydraulic power requirements, 3-phase 380V is recommended for optimal cycle speeds.
No. The upper platform is constructed from solid galvanized checker plate steel with integrated side drainage gutters and oil-catch troughs, completely preventing any rainwater, snowmelt, or road grime from dripping onto the lower vehicle.
Contact HASY Industries engineers today for a complimentary on-site garage survey and customized 3D parking layout.
